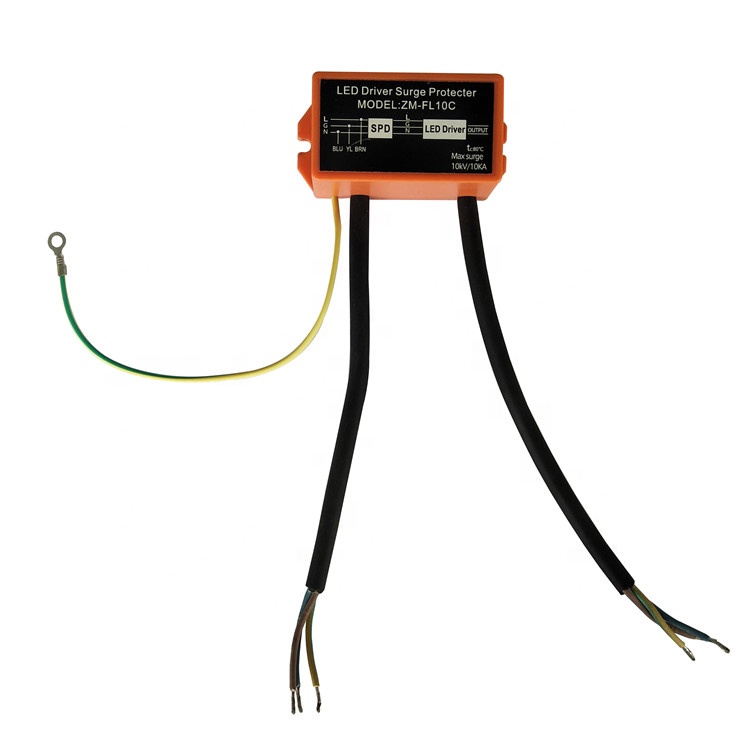

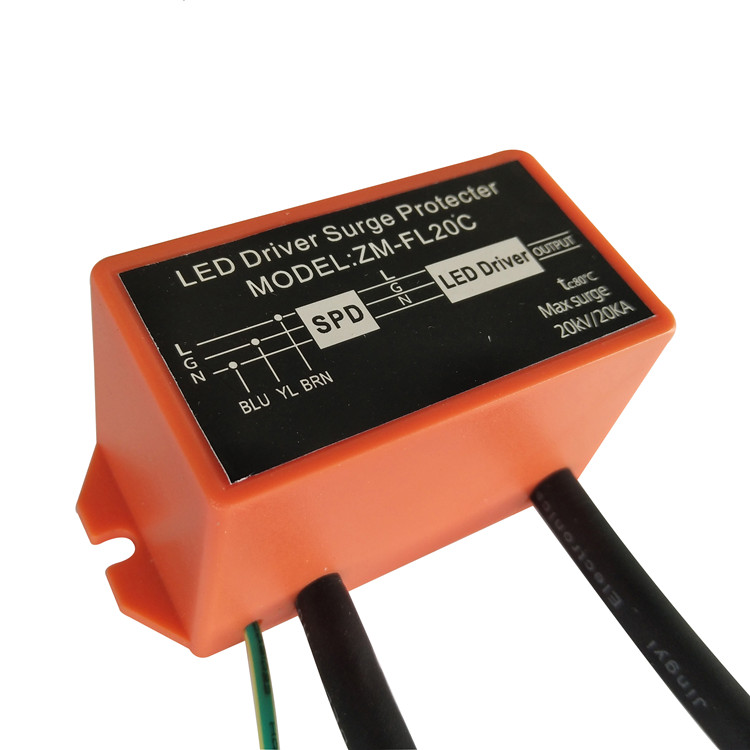

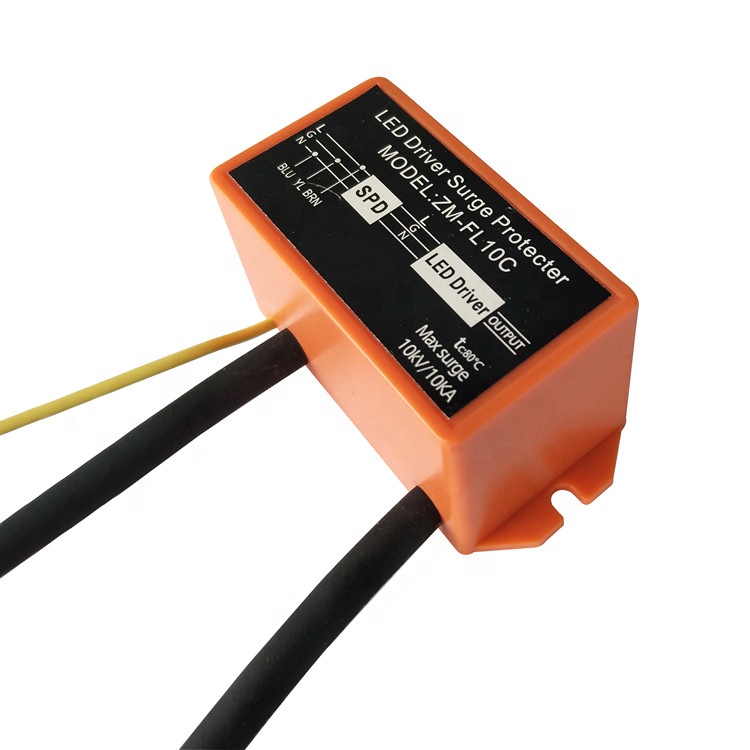

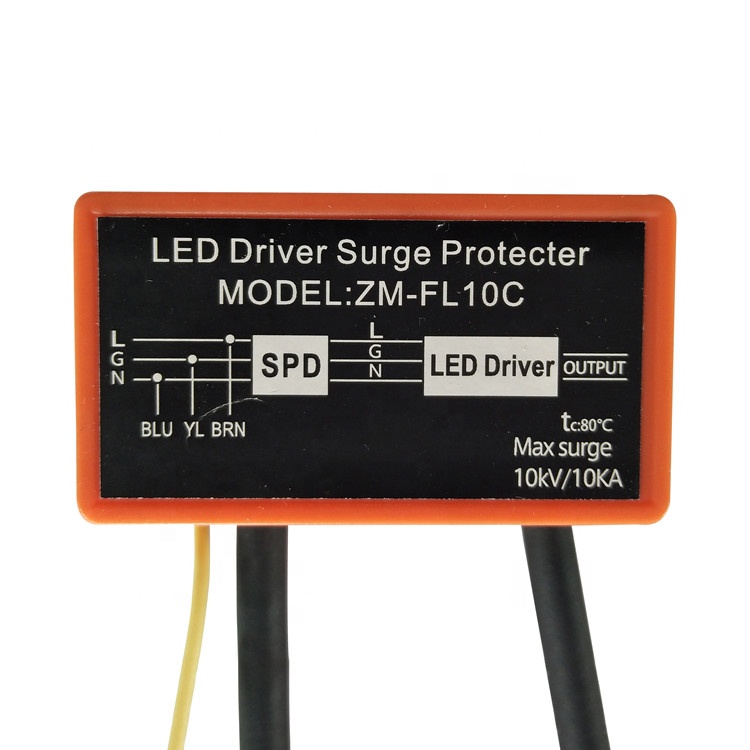

Waterproof and dustproof surge protection led driver
Feature
l Applicable to lamps with Class I or Class II installation
l Protection mode: LN, L-PE, N-PE
l Built-in thermal separation function, higher safety
l Series isolation design, excellent protection performance
l Excellent impact resistance, low voltage limit
l Built-in LED indicator, save maintenance time by identifying replacement requirements
l Double insulated cable
l IP67 dustproof and waterproof
Specification
Related supply voltage/ Un（VAC） | 100-277V |
Maximum continuous working voltage/ MCOV / UC（VAC） | 320V |
Rated load current/ IL（A） | 5A |
Nominal discharge current/inch（KA） | 10KA |
Maximum discharge current/ Imax（KA） | 20KA |
Open circuit voltage/ Uoc（KV） | 20kv |
Voltage protection level / rise（V） | LN（1.5KV），LG / PE（2.3KV），NG / PE（2.3KV） |
Terminals | hose（0.75-2.5） |
Connection method | Tandem |
Power system | TN |
Protection class | IP67 |
| Ambient temperature | -40℃-+80℃ |
ULtest | Test level II and III |
Types of | Type 2 and 3 |
